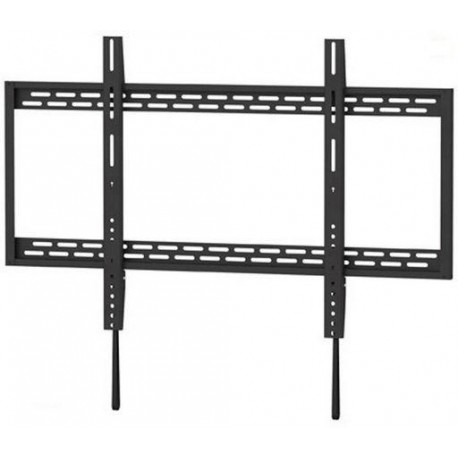

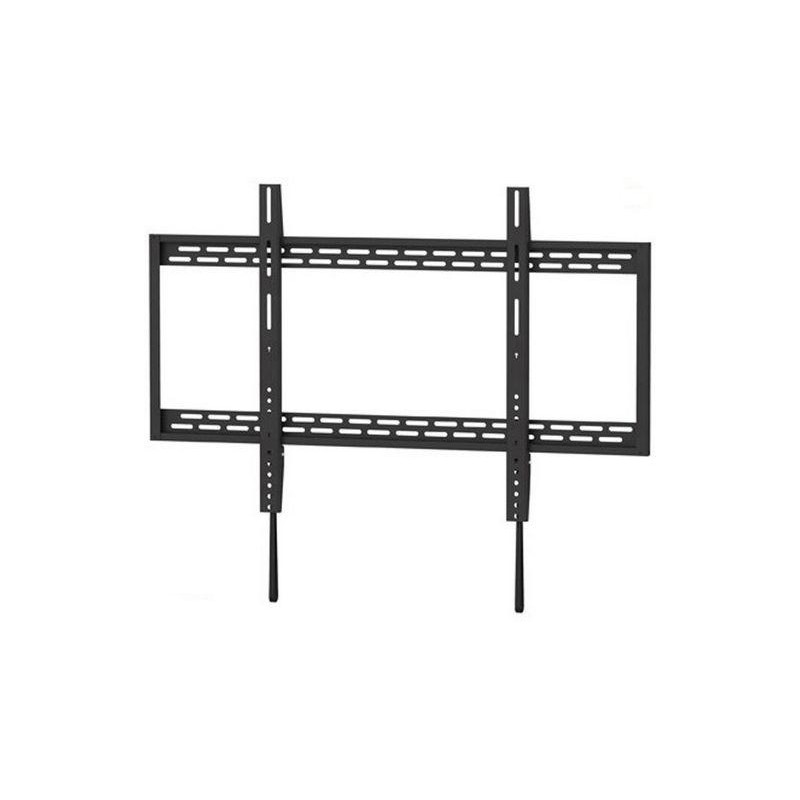

60-100 inch Extra Large Universal TV Wall Bracket Fixed

Reference: TVSPLASMA80

Condition: New product

1 Item Items

Available In Stock

Designed to fit most 60"-100" curved & flat panel TVs up to 100kg.

Its automatically click-in spring lock with easily-release cord easily and securely attaches your super large flat panels to wall.

Strength has been tested for a minimum of four times its stated load capacity.

Screws included:

4x M5x14

4x M6x14

4x M6x30

4x M8x30

4x M8x50

6x Wall mounting screw with brick plug

Spacers and washers included.

Instruction manual available in Downloads below.

SPECIFICATION

Product Category:	Fixed TV Wall Mount

Material:	Steel
Metal Sheet Thickness:	Wall Plate THK=3mm cold-rolled sheet,Bracket Arm THK=2mm cold-rolled sheet
Surface Finish:	Powder Coating
Color:	Fine Texture Black

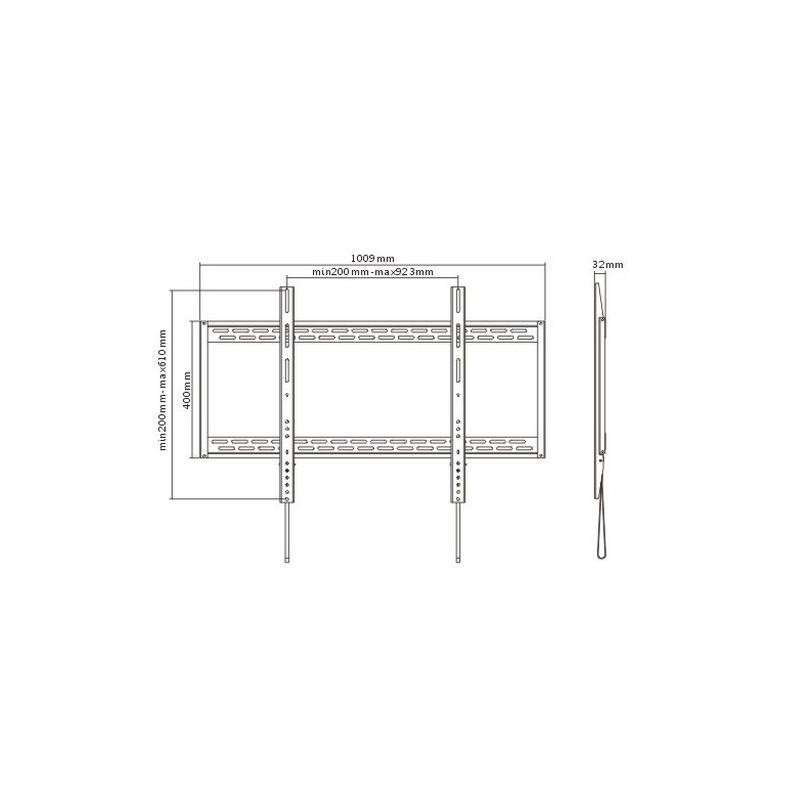

Dimensions:	1009x630x32mm (39.7"x24.8"x1.3") (Parcel 6kg, 120x42x5cm)
Fit Screen Size:	60"-100"
Fit Curved TV:	Yes
Mounting Hole Pattern:	VESA & Universal
VESA Compatible:	200x200,300x300,400x200,400x400,600x400,800x400,800x600,900x600

Weight Capacity:	100kg (220lbs)
Strength Tested:	4 Times Approved
Profile:	32mm (1.3")
Installation:	Double Stud(406mm/450mm/600mm),Solid Wall
Panel Type:	Detachable Panel
Wall Plate Type:	Fixed Wall Plate
Cable Management:	No
Anti-theft:	No
Bubble Level:	No
