37-70 inch Heavy Duty Universal TV Wall Bracket Full-Motion

Reference: TVSWALL1261

Condition: New product

Universal Television Wall Bracket 37-70inch

Supports upto 60Kg

Special Order : BACKORDER ETA 3-5 day delay to order in from suppliers warehouse.

Dual-arm articulating wall mount for TVs up to 70".

Full motion allows maximum flexibility — tilts and swivel your TV for easy viewing from any seat in a room.

Post-installation level adjustment allows the TV to “roll” up to 5 clockwise and counterclockwise to ensure it is perfectly level.

Wide wall plate fits for 406/450mm stud installation.

Compatible with VESA hole up to 800x400.

Holds upto 60Kg

Installation Manual - see downloads below.

SPECIFICATION

Product Category:	Full-motion TV Wall Mount

Material:	Steel
Metal Sheet Thickness:	VESA Panel 2mm cold-rolled sheet,Bracket Arm 2mm cold-rolled sheet,Wall Plate 3mm hot-rolled sheet
Pipe Size:	20x40x1.5mm (0.79"x1.6"x0.059")
Surface Finish:	Powder Coating
Color:	Fine Texture Black

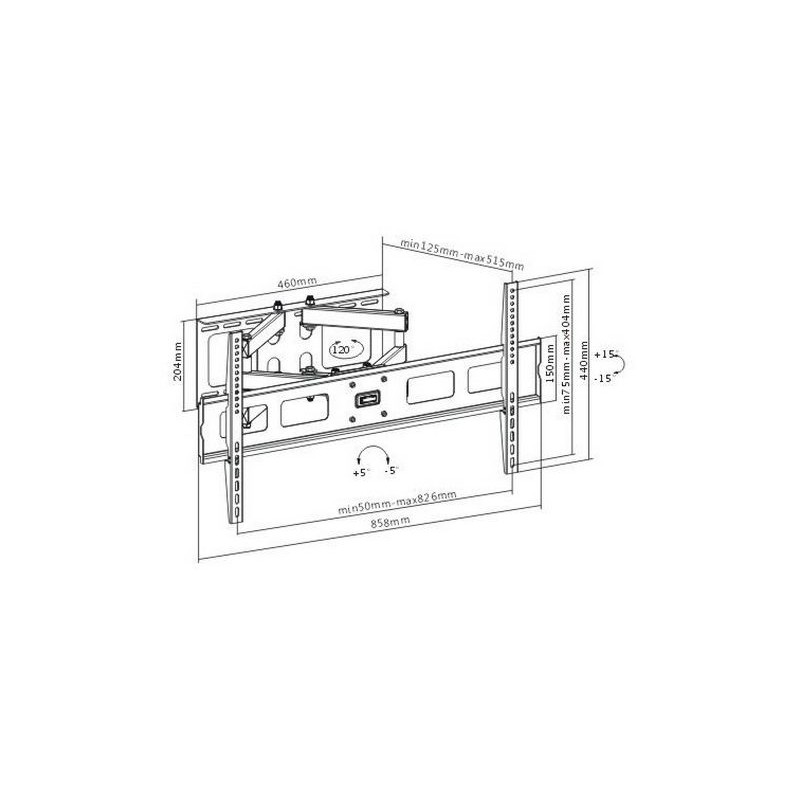

Dimensions:	515x858x440mm (20.3"x33.8"x17.3")
Fit Screen Size:	37"-70"
Fit Curved TV:	Yes
Mounting Hole Pattern:	VESA & Universal
VESA Compatible:	200x200,300x300,400x200,400x400,600x400,800x400
Max. VESA:	826x404mm
Weight Capacity:	60kg (132lbs)

Strength Tested:	3 Times Approved
Profile:	125~515mm (4.9"~20.3")
Tilt Range:	+15°~-15°
Swivel Range:	120°
Screen Level:	+5°~-5°
Screen Freely Tilting:	Yes
Installation:	Solid Wall,Double Stud(406mm)
Panel Type:	Detachable Panel
Wall Plate Type:	Fiixed Wall Plate
Cable Management:	No
Anti-theft:	No
Bubble Level:	Built-in Bubble Level (Integrated on Wall Plate/VESA Panel)
