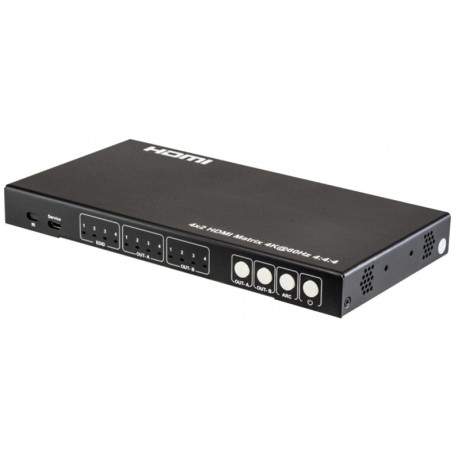

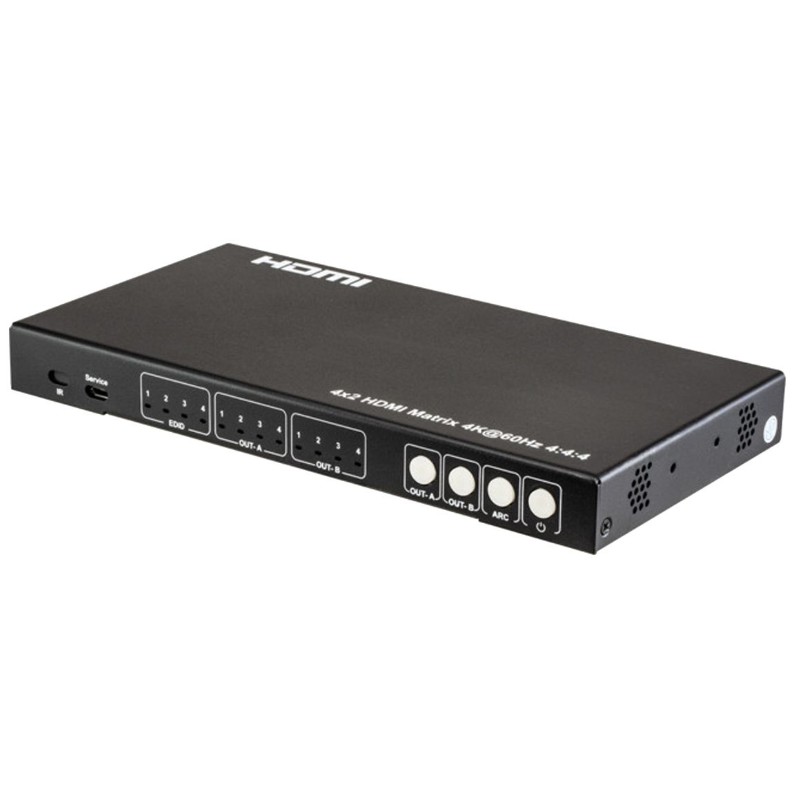

Pro.2 4 Input / 2 Output HDMI 18Gbps Matrix Switcher

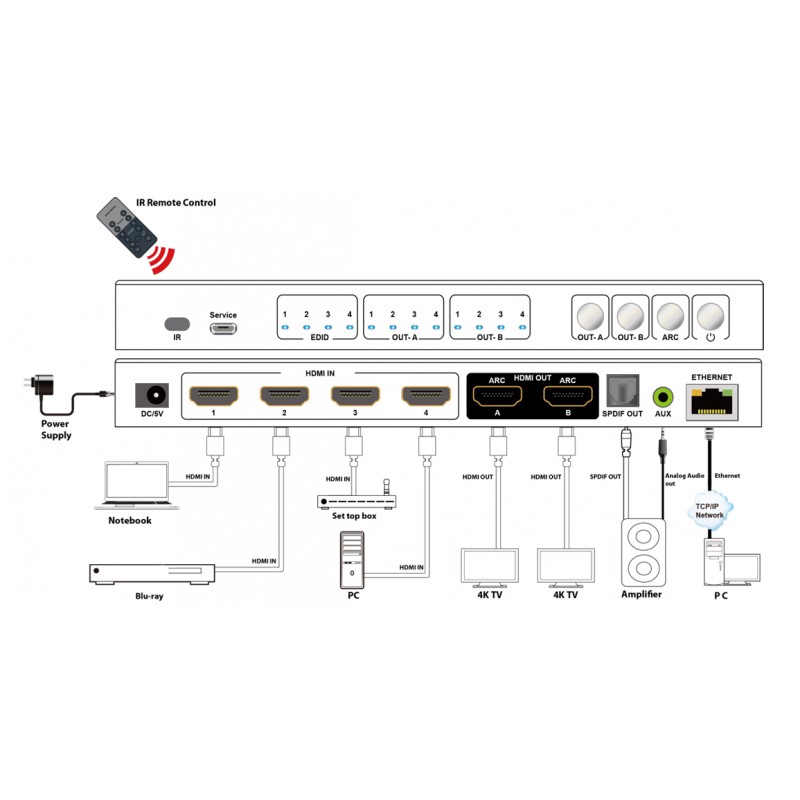

This Pro2 4x2 4K60 HDR HDMI Matrix has four HDMI inputs and two HDMI outputs, allowing multiple source devices to be connected and transmitted to two displays.

This unit supports 4K@60Hz (4:4:4), 12-bit Deep Colour, HDR10, HD audio formats, and other features defined by the HDMI 2.0 specification.

HDCP 2.2/HDCP 1.4 compliant.

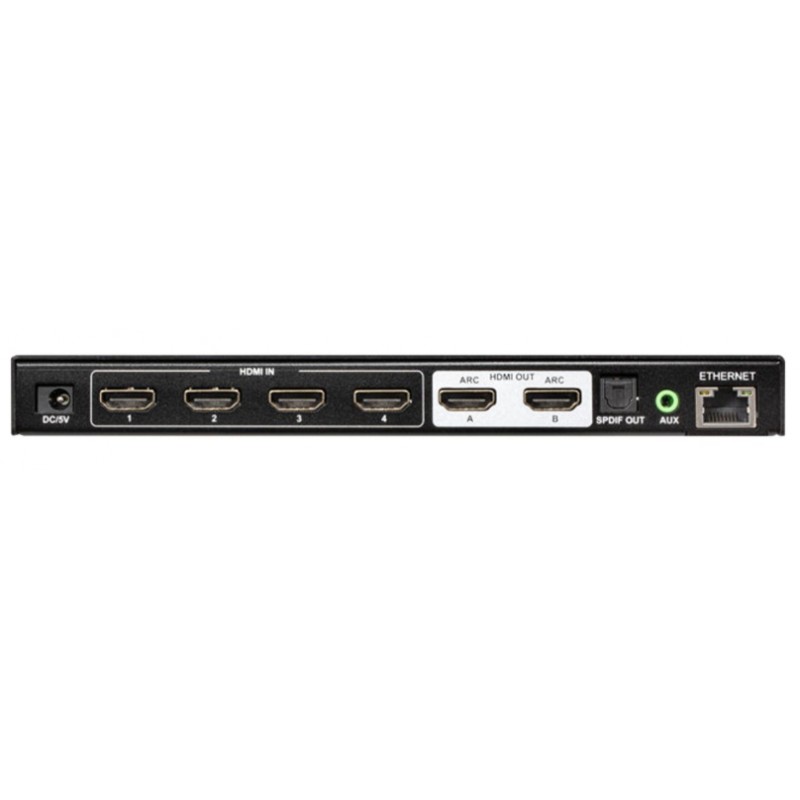

It supports audio extraction with an AUX analogue audio out and SPDIF out ports, ARC, and EDID management to allow for seamless communication between source devices and displays.

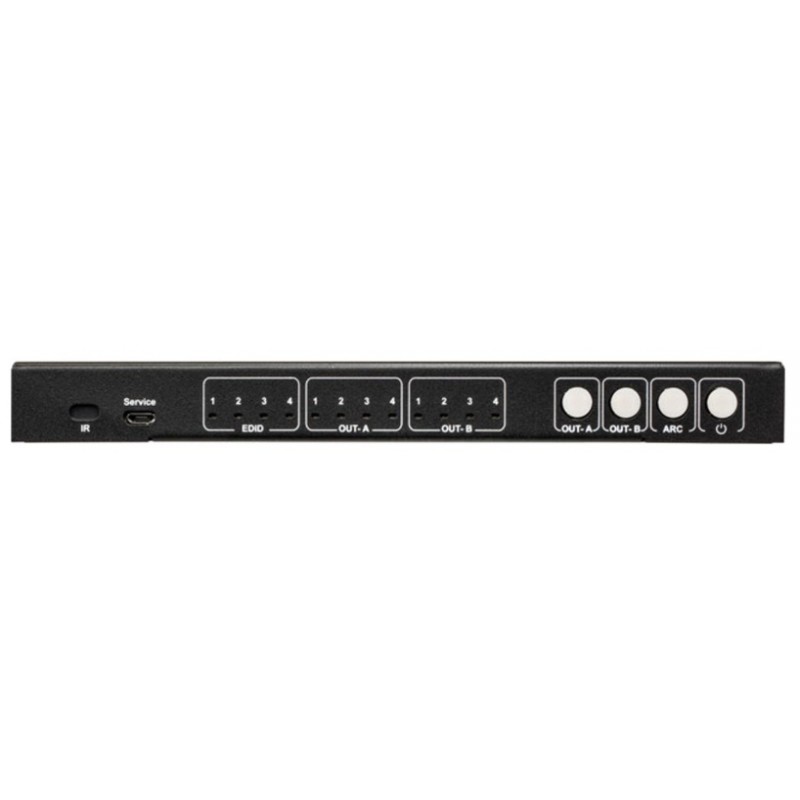

This HDMI matrix can be managed using the front panel buttons, IR remote, web GUI, and command controls.

Features

• 4×2 HDMI Matrix (4×HDMI Inputs, 2×HDMI Outputs)
• HDMI 2.0 version supports 4K@60Hz YUV4:4:4
• Signal bandwidth up to 18 Gbps
• SPDIF out/Analog audio 2.0 extraction
• HDCP 2.2/HDCP1.4 compliant
• LPCM7.1/24-bit/96khz, Dolby Atmos and DTS-X
• Supports Dolby and HDR10
• Supports 3D, deep color max 12bit

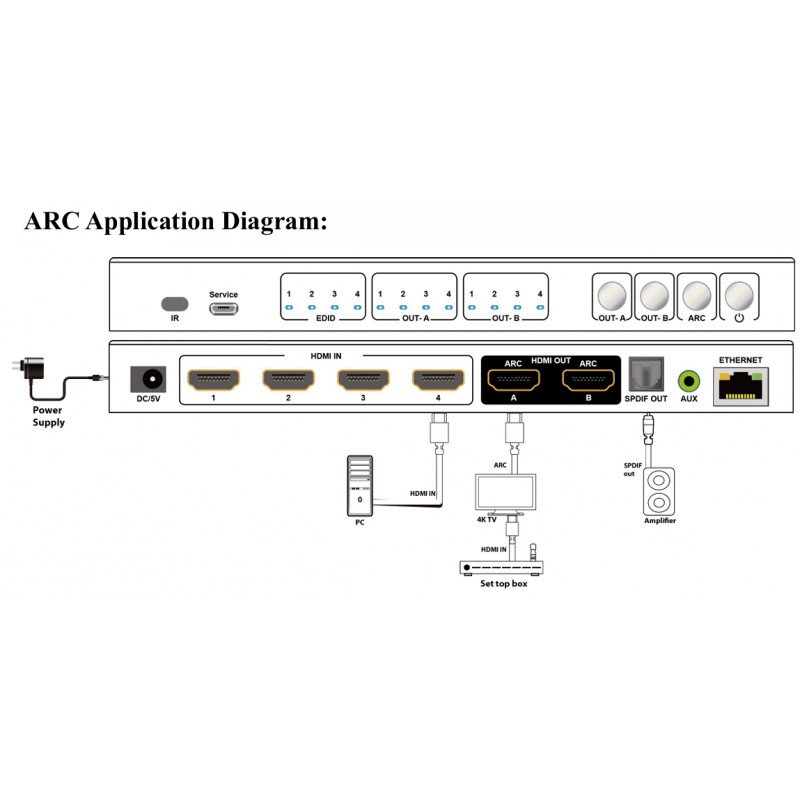

• Support CEC and ARC on both outputs
• EDID management to have mixed EDID or copy EDID
• Use as a downscaler to downscale from 4K60Hz to 1080p
• Micro USB port for future firmware upgrade
• Control the unit with the front panel button, IR remote control, web control, or third-party platform
• The command list is available to integrate with the third-party platform

Package Contents

1x HDMI Matrix

1x 5V 1ADC power supply

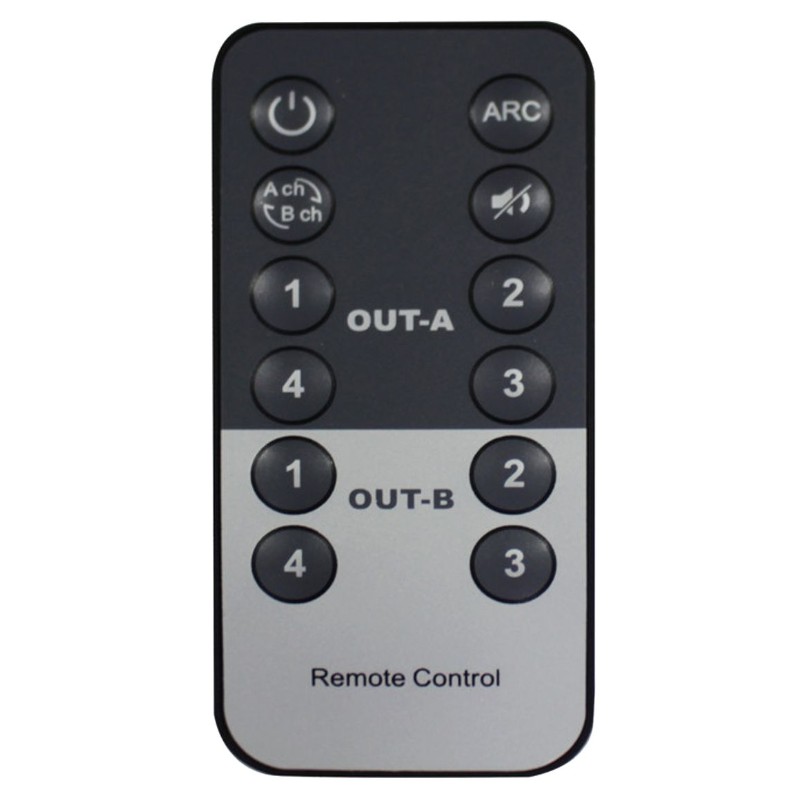

1x Remote control

1x CD

If you would like a copy of the instruction manual, please email us a request.
