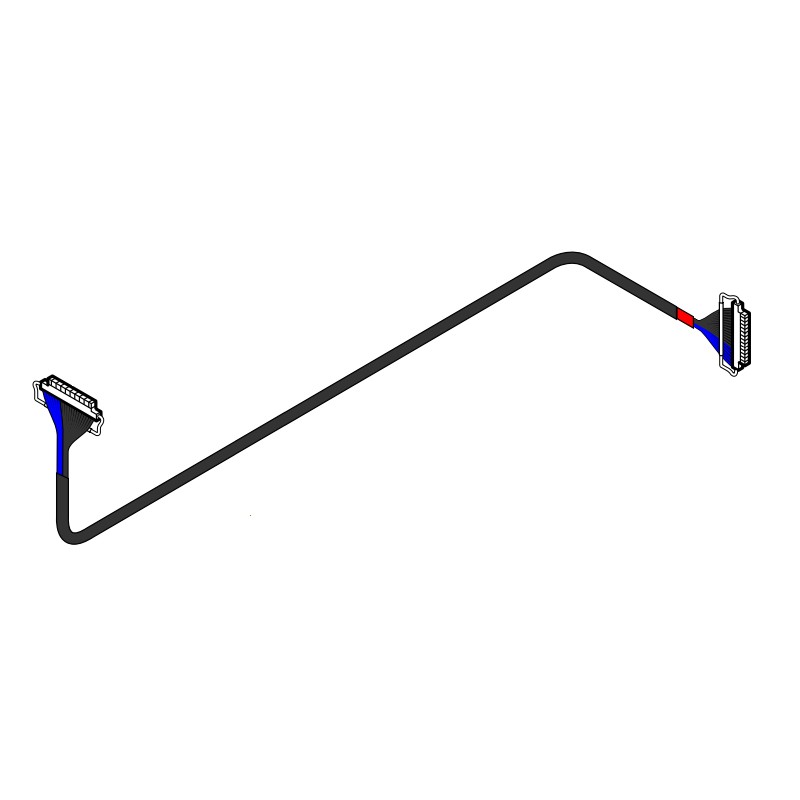

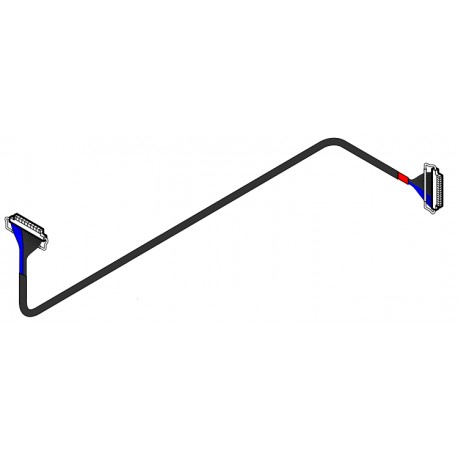

The coaxial harness (40P) connects the DISPLAY board and the SUB-D board is a very thin harness.
Be careful not to apply excessive force to the connector when pulling it.
![]()
Need Help? Click Here
For Sony models :XAV-9500ES

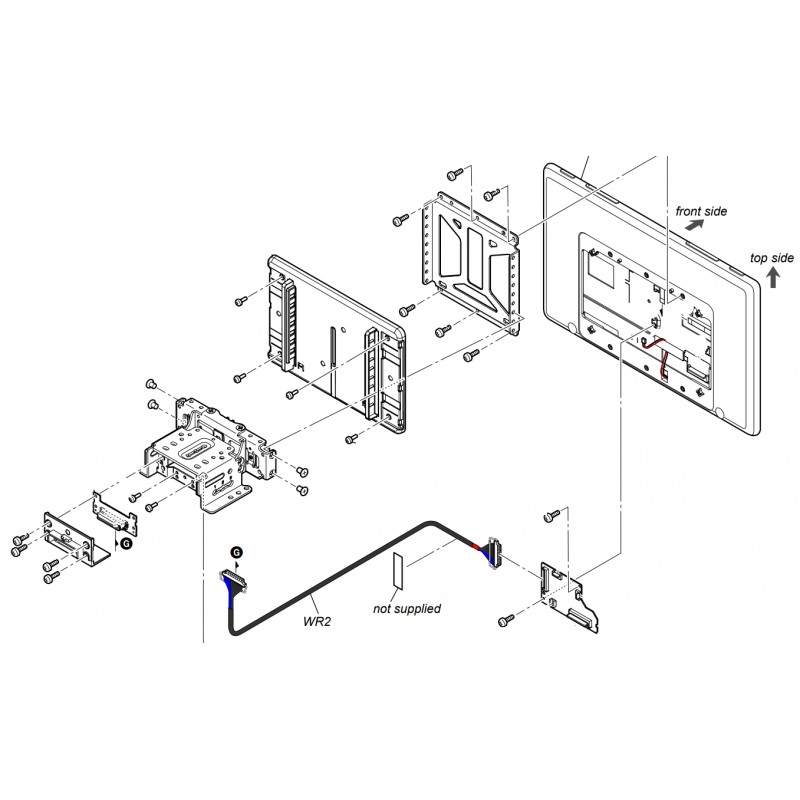

Location WR2 on exploded diagram.
