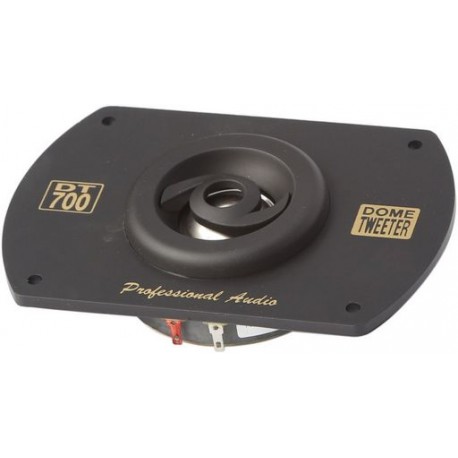

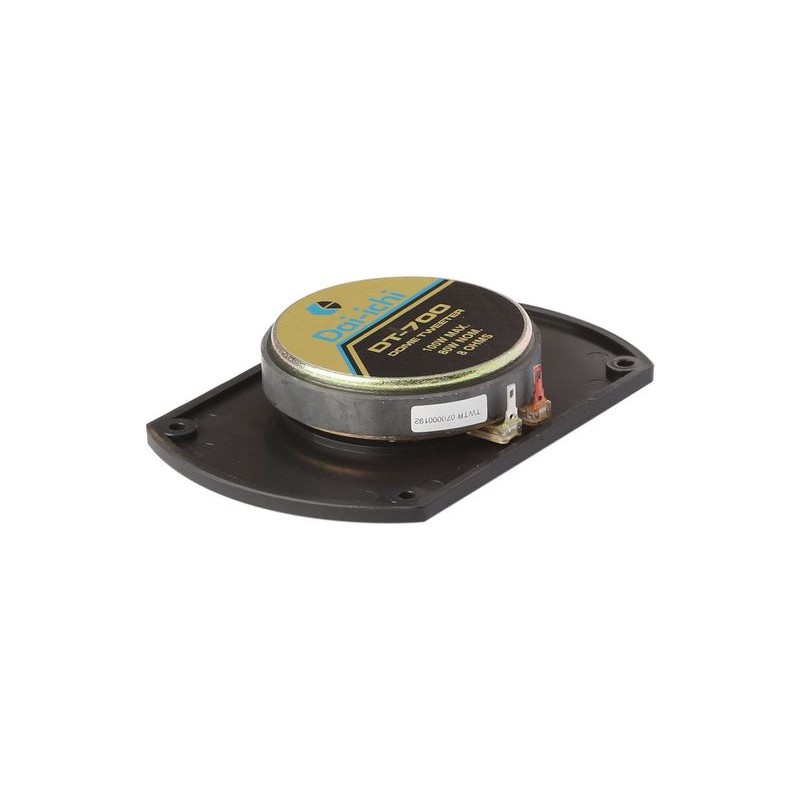

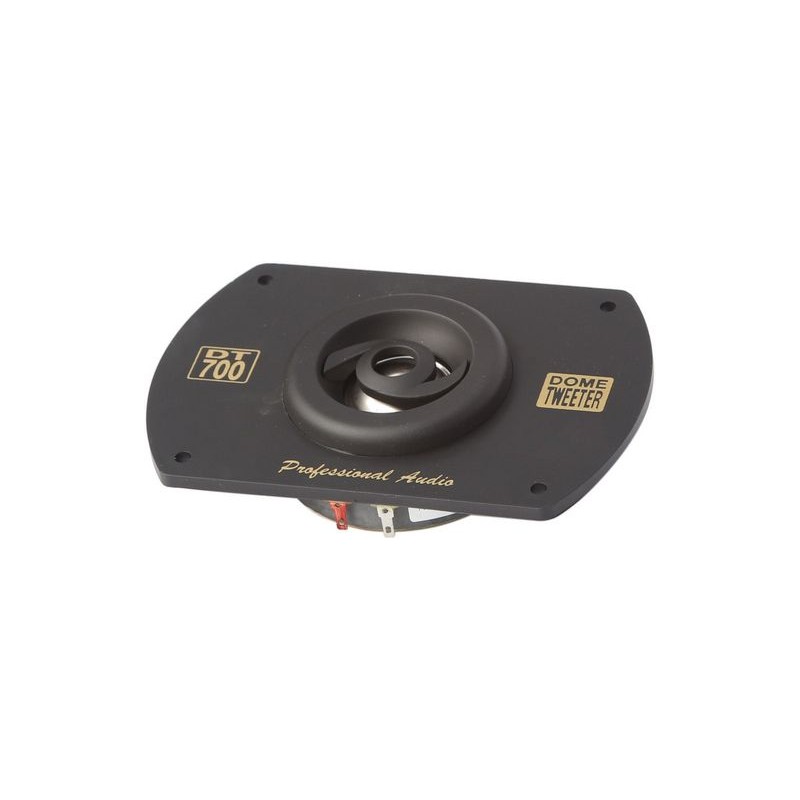

TITANIUM DOME WIDE FRAME - 1inch
Need Help? Click Here
Recipient :
* Required fields
or Cancel
Aluminium voice coil.
Ferro fluid & dampening.
High thermal power handling.
Wide flange.
Ideal for filling the large hole left by previous speaker.
| Description | 1" TITANIUM DOME WIDE FRAME |
| Type | Tweeter |
| Size | 1" |
| Power | 70Wnom/100Wmax |

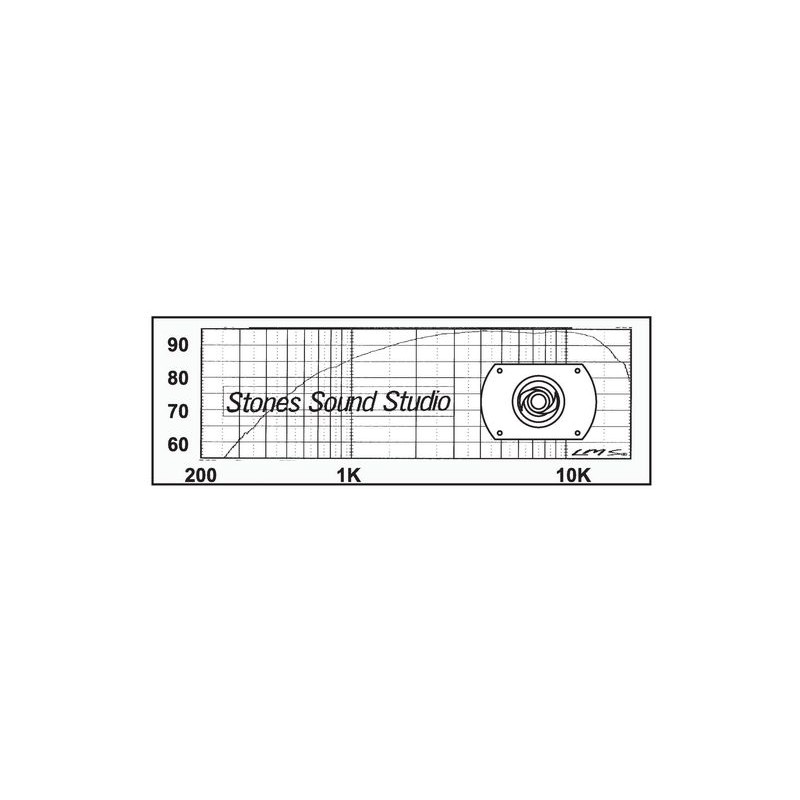

| Freq. | 800Hz - 20KHz |

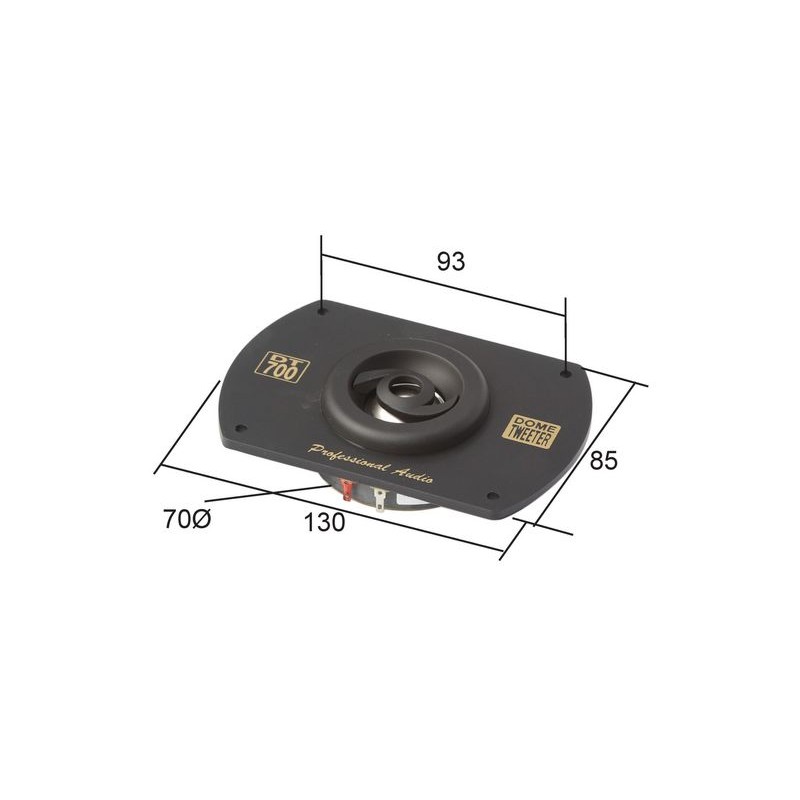

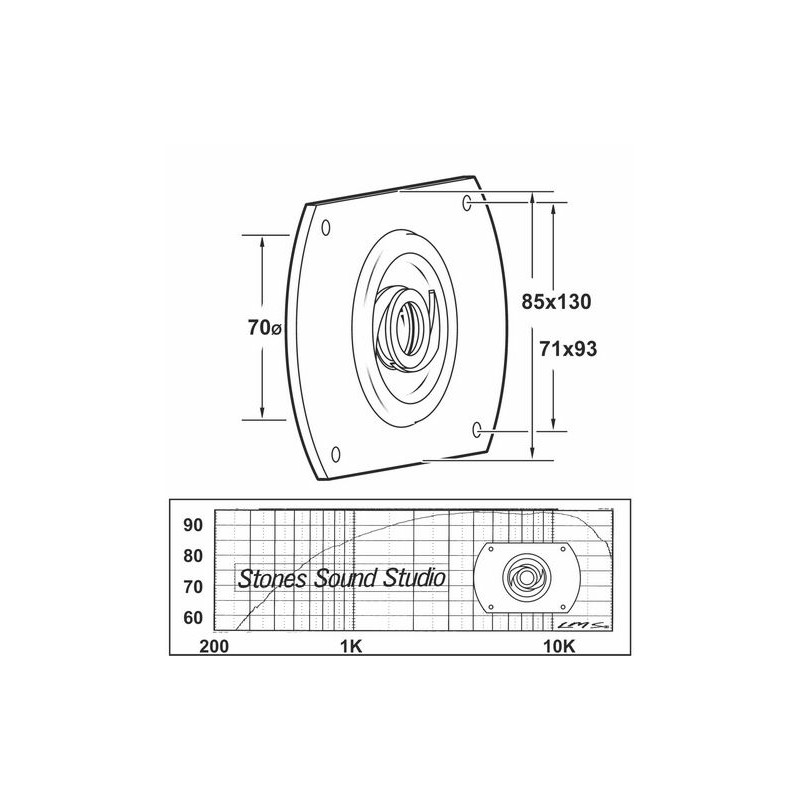

| Hole | 75mmØ |
| Impedance | 8Ω (Re 5.5Ω) |
| Mount | 93mm |
| Mag. | 15Og |
| Sens. | 94dB |
| Re | 5.5Ω |
| SPL | 94dB |
| Zn | 8Ω |
| Diam. | 85x130mm |
| Dimensions | 85x130mm |
| Prms | 70W |
| Materials | Titanium |
| Impedance (Ohm) | 8 ohm |
| Power (RMS) | 51-100 Watt |
| Inch | 1 |
More speaker available, just email the size, ohm and watts and we can match it for you.
