Genuine Sony TV Remote
$69.00
More Sony TV Remote X7000D X7500D X8000D X8000E X8001E X8500D X8500E X9000E X9300D X9300E X9400D X9400E RMF-TX300A series
Last items in stock
All best sellers
  • Banner

Speaker SB ACOUSTICS 6.5" 4Ω MID-WOOFER - Round Frame
  • Speaker SB ACOUSTICS 6.5" 4Ω MID-WOOFER - Round Frame
  • Speaker SB ACOUSTICS 6.5" 4Ω MID-WOOFER - Round Frame
  • Speaker SB ACOUSTICS 6.5" 4Ω MID-WOOFER - Round Frame
  • Speaker SB ACOUSTICS 6.5" 4Ω MID-WOOFER - Round Frame
  • Speaker SB ACOUSTICS 6.5" 4Ω MID-WOOFER - Round Frame
  • Speaker SB ACOUSTICS 6.5" 4Ω MID-WOOFER - Round Frame

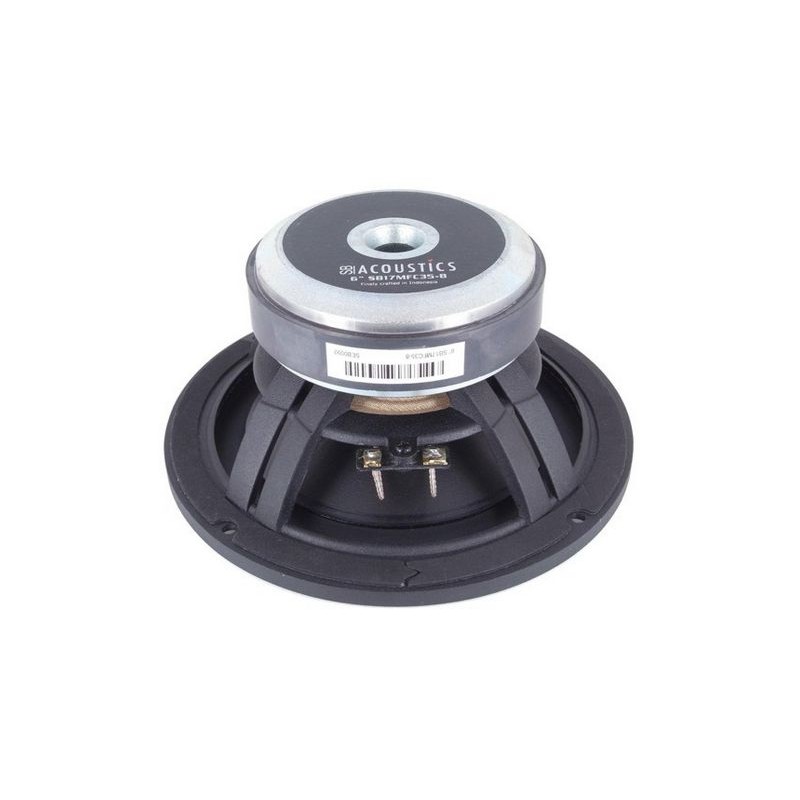

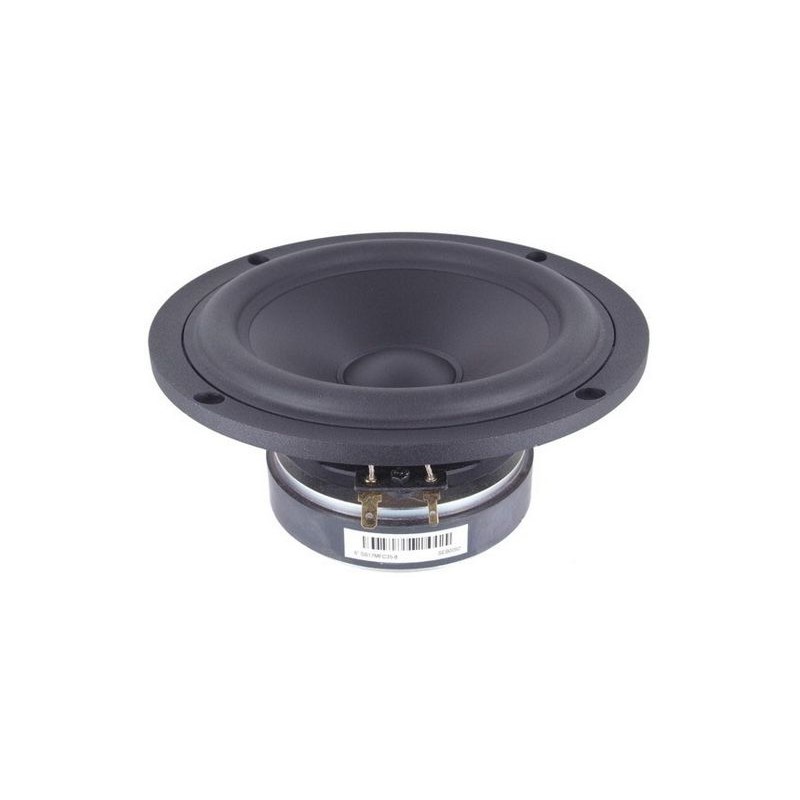

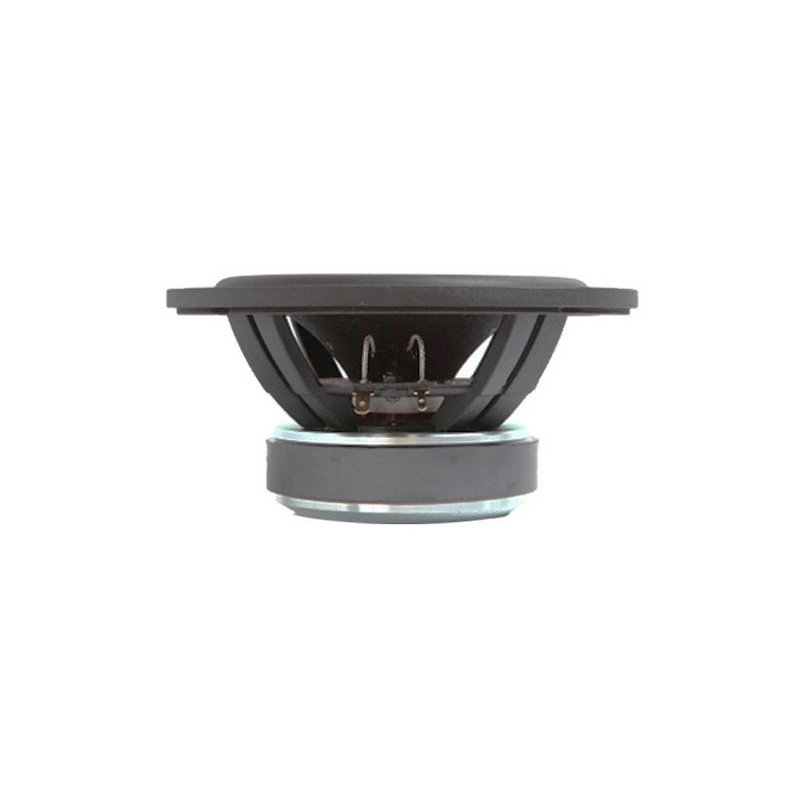

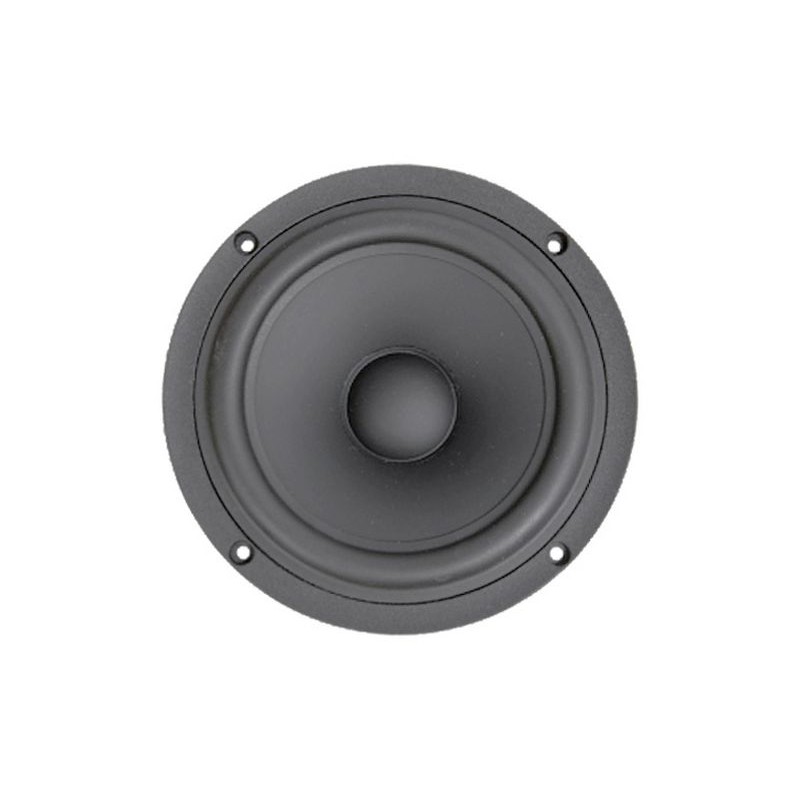

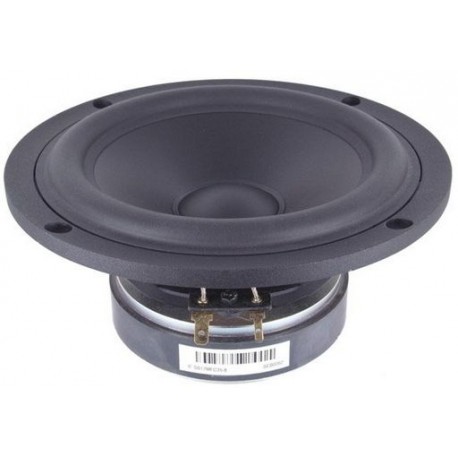

Speaker SB ACOUSTICS 6.5" 4Ω MID-WOOFER - Round Frame

SPK0553
Sony

Speaker SB ACOUSTICS MID-WOOFER

6.5 Inch

Need Help? Click Here

$105.00
Tax included
Quantity
Special Order : BACKORDER ETA 3-5 day delay to order in from suppliers warehouse.

Description

Vented cast aluminium chassis for optimum strength and low compression.

Soft low damping rubber surround for improved transient response.

Non-conducting fibre glass voice coil former for minimum damping.

Extended copper sleeve on pole piece for low inductance and low distortion.

CCAW voice coil for reduced moving mass.

Vented pole piece for reduced compression.

SPECIFICATION -
Le 0.13mH
Qts 0.28
Qes 0.3
Rms 0.45kg/s
Mag. 0.54kg
QTY 1
Sd 118cm²
Mms 12.3g

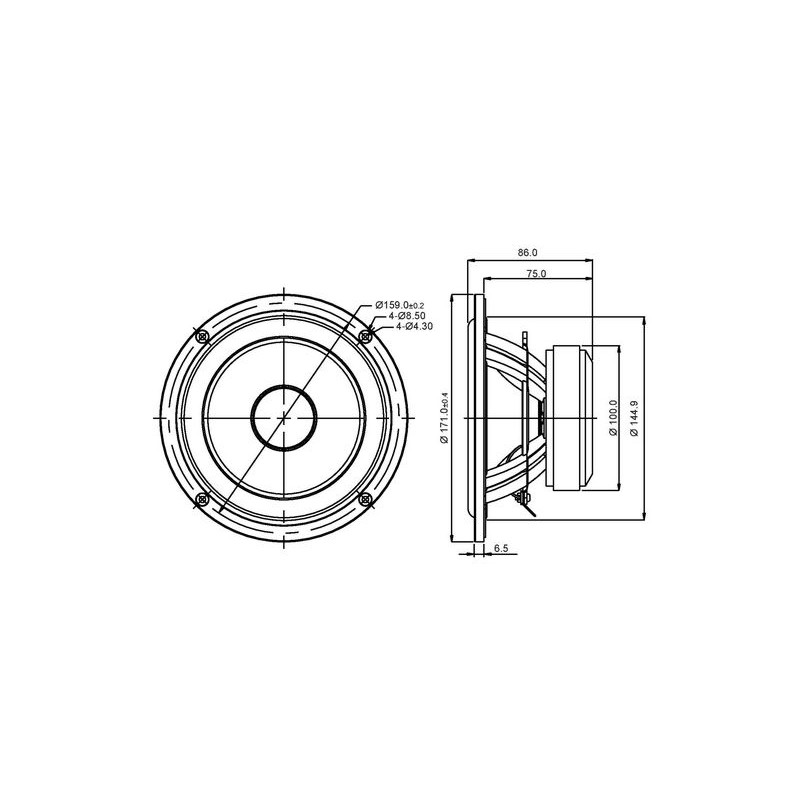

Diam. 152mmØ
Page 16
Width 171mmØ
Cms 2.29mm/N
Re 3.1Ω
Fs 30Hz
Coil 35.5mmØ
Impedance (Ohm) 4 ohm
Vas 45L
Zn
Impedance 4Ω (Re 3.1Ω)
Qms 5.2
Power (RMS) 51-100 Watt
Inch 6.5
Size 6.5"
Prms 60W
Power 60Wrms
Depth 86mm
Sens. 90dB
Type Mid-Woofer
Series Poly Cones
Materials Polypropylene
Brand SB Acoustics

Product Details
SPK0553
