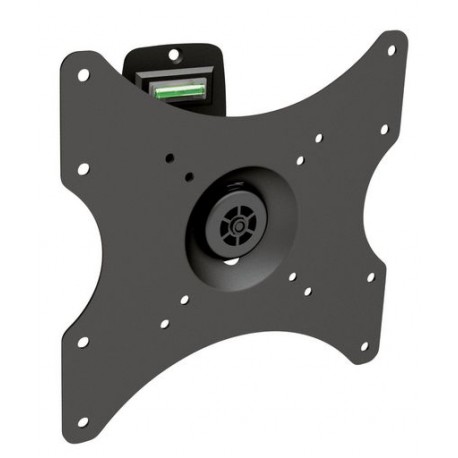

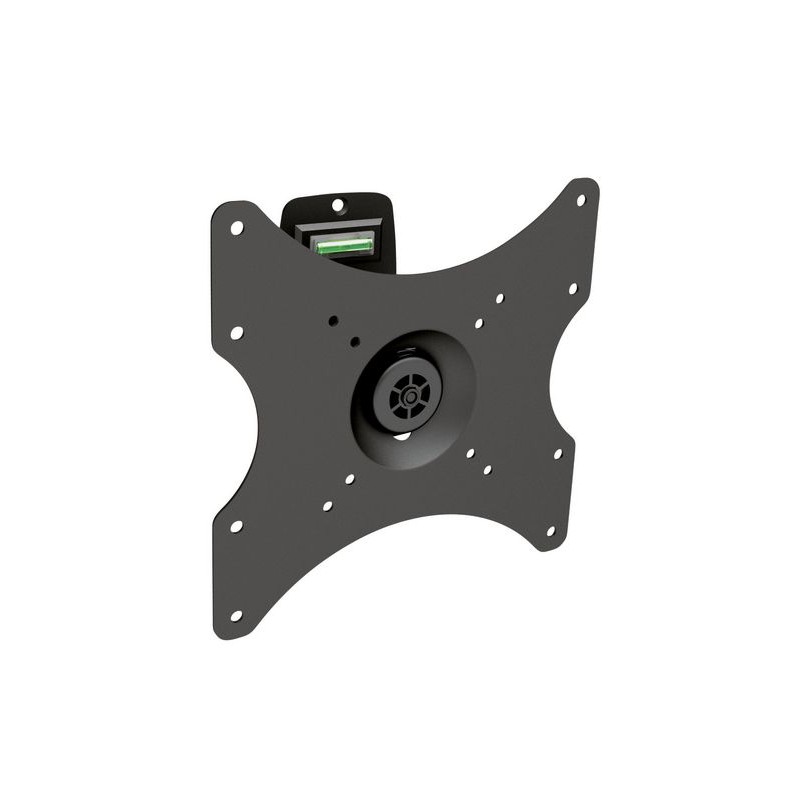

Universal Television TILTABLE Wall Bracket 23-42inch

View larger

23-42 inch Universal TV Wall Bracket Full-Motion

Reference: TVSWALL1320

Condition: New product

Universal Television TILTABLE Wall Bracket 23-42inch

Wall bracket for LCD and Plasma televisions.

Supports upto 20kg

Need Help? Click Here

More details

Special Order : 3-5 day delay to order in from suppliers warehouse.

Send to a friend

Send to a friend

23-42 inch Universal TV Wall Bracket Full-Motion

Universal Television TILTABLE Wall Bracket 23-42inch

Wall bracket for LCD and Plasma televisions.

Supports upto 20kg

Need Help? Click Here

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

More info

Pivoting wall mount for 23''-42” flat-panel TVs up to 20kgs.

It allows 360° of effortless rotating with the push of a finger, making it easy to roll from portrait to landscape viewing.

Full motion allows maximum flexibility — tilts, swivel, pan and extend your TV up to 96mm from the wall in every direction for easy viewing from any seat in a room.

In-arm cable clips route cables for a clean appearance.

Slide-in VESA plate ensures easy installation.

VESA-compatible fits 75 x 75,100 x 100,200x100 and 200x200 hole patterns.

SPECIFICATION

Product Category:	Pivot TV Wall Mount

Material:	Steel
Surface Finish:	Powder Coating
Color:	Fine Texture Black

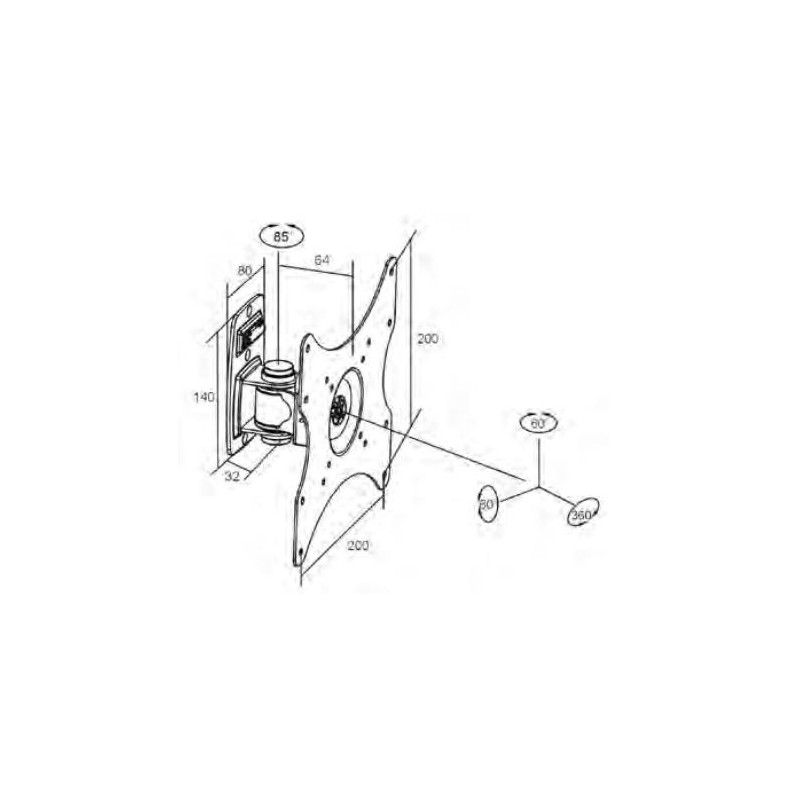

Dimensions:	225x225x96mm (8.9"x8.9"x3.8")
Fit Screen Size:	23"-42"
Mounting Hole Pattern:	VESA Only
VESA Compatible:	75x75,100x100,200x100,200x200
Max. VESA:	200x200mm
Weight Capacity:	20kg (44lbs)
Strength Tested:	3 Times Approved

Profile:	96mm (3.8")
Tiilt Range:	-15°~+15°
Swivel Range:	85°
Screen Rotation:	360°
Screen Freely Tilting:	Yes
Installation:	Solid wall,Single Stud
Panel Type:	Detachable Panel
Wall Plate Type:	Fiixed Wall Plate
Cable Management:	Yes
Anti-theft:	Yes
Bubble Level:	Built-in Bubble Level (Integrated on Wall Plate)
