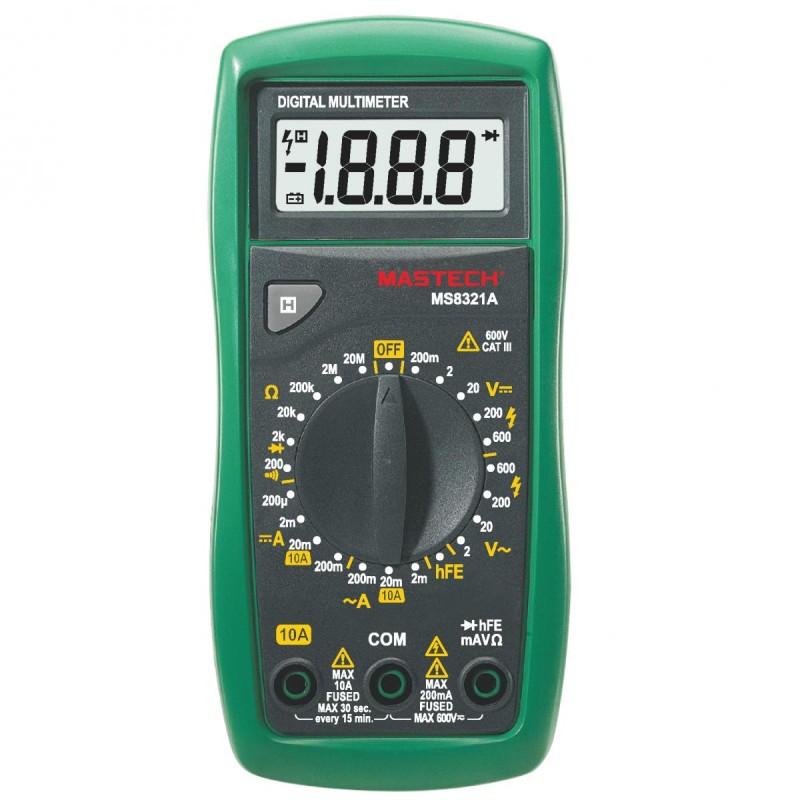

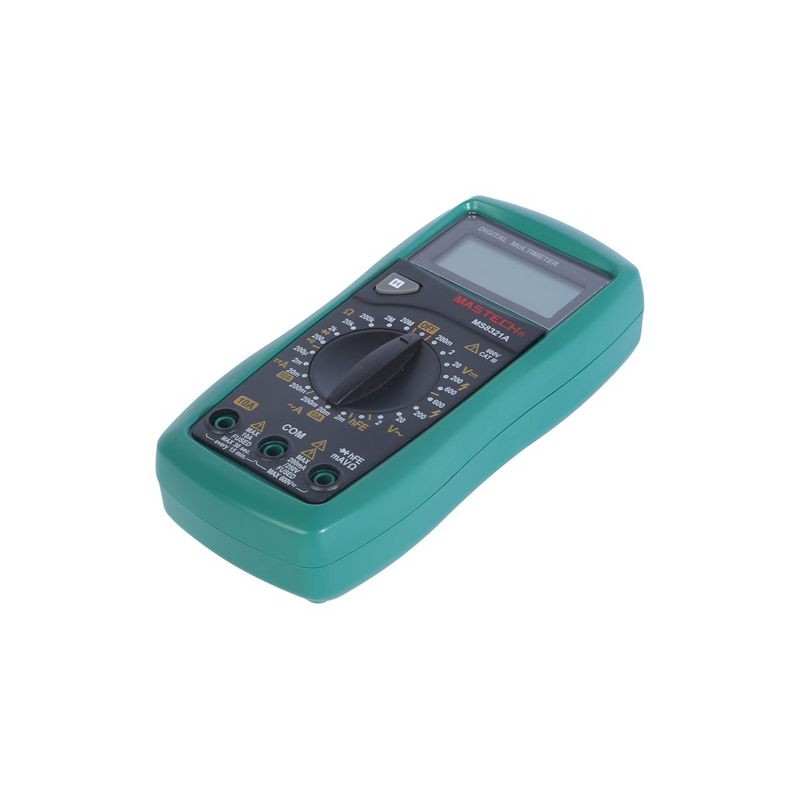

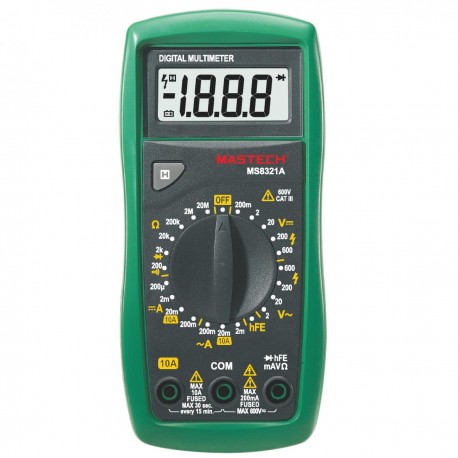

Pocket Size Digital Multimeter

This handheld digital multimeter allows the user to test voltage, current, resistance.

The meter also features data hold, continuity buzzer, battery tester and transistor Hfe. It is RoHS compliant; CAT III 600V approved.

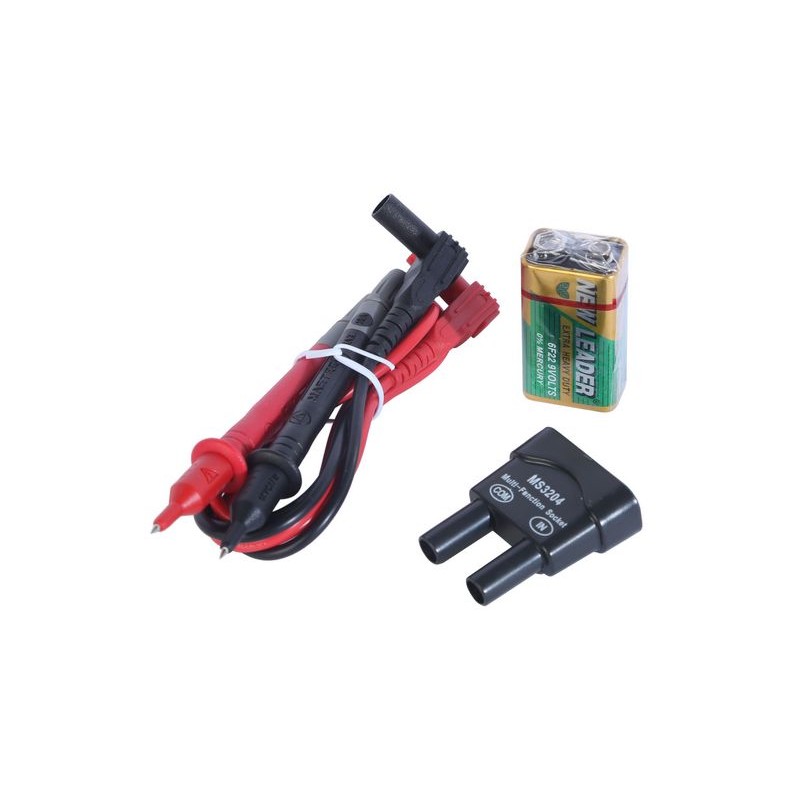

includes 9Volt battery, test probes with protective cap and a hFE adaptor.

Display: 2000 counts (updates 2-3/sec)
Manual Range
Auto Power Off
Data hold
Diode: 2.8V
Continuity Buzzer: <50Ω
Low Battery Display
Transistor hFE: 0~1000

Safety Rating: 600V CAT III
Pollution Degree: 2
Operating Altitude <2000m
Operating Temperature/Humidity: 0~40°C, (<80% RH)
Storage Temperature/Humidity: -10~60°C, (<70% RH, remove battery)
Temperature Coefficient: 0.1xaccuracy/0°C (<18°C or >28°C)
Max. Input between terminals and earth ground: 600V DC or AC rms
Fuse Protection: F1 250mA/250V , F2 10A/600V
Sample Rate: Approx. 3 times/sec,
Display: 3 ½ digit LCD display,max. reading: 1999.
Over-range Indication: display shows“1”
Low Battery Indication: When battery voltage drops below the normal operating voltage,“ ”will appear on the display.
Polarity Indication: Display automatically displays “-“
Power: 9V battery NEDA 1604 or 6F22
Dimensions: 158(L)x74(W)x36(H) mm.
Weight: approx. 220g (including battery)

Specifications:
DC Voltage 200mV/2V/20V/200V +-(0.7%+1)
600V +-(0.8%+2)
AC Voltage 2V/20V/200V +-(0.8%+3)
600V +-(1.2%+3)
DC Current 200µA/2mA/20mA +-(1.0%+3)
200mA +-(1.5%+1)
10A +-(2.0%+5)
AC Current 2mA/20mA +-(1.2%+5)
200mA +-(1.8%+5)
10A +-(3.0%+10)
Resistance 200Ω +-(1.0%+3)
2KΩ/20KΩ/200KΩ/2MΩ +-(1.0%+1)
20MΩ +-(1.0%+5)
