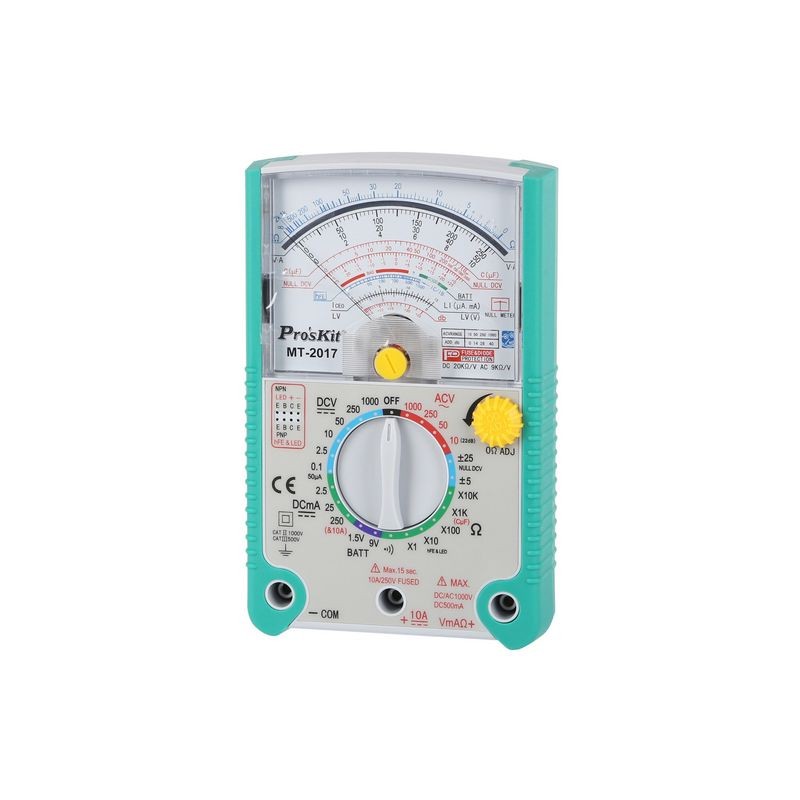

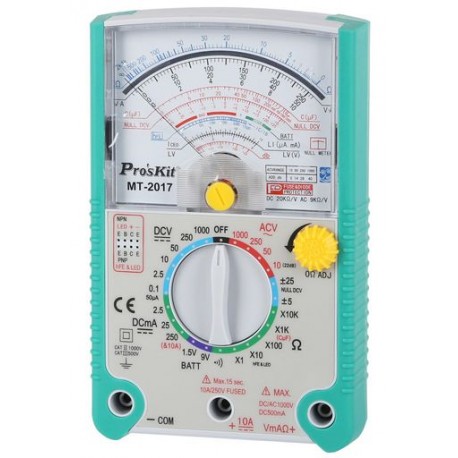

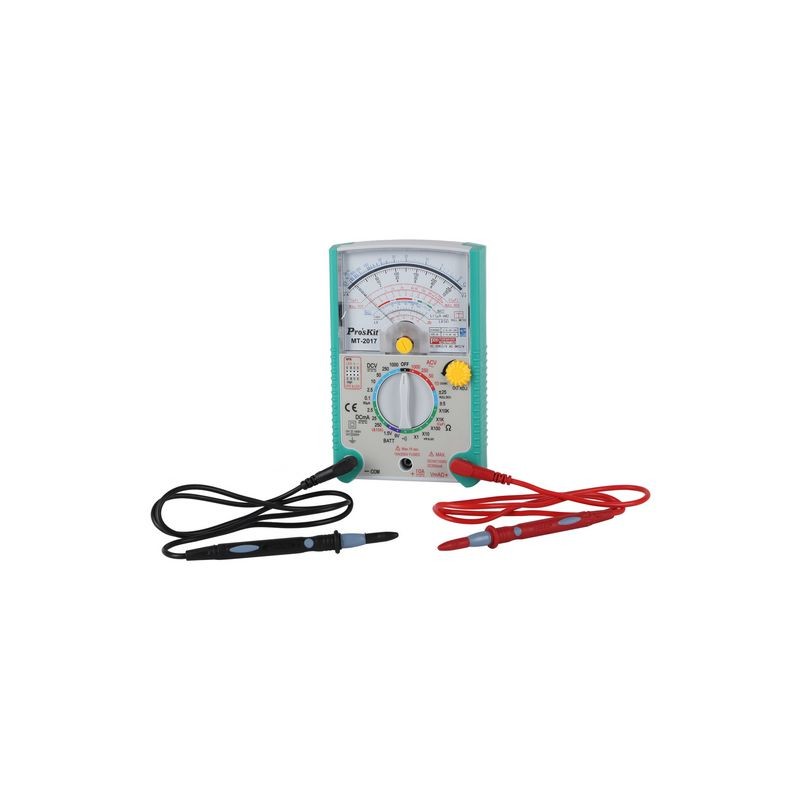

Analogue Multimeter

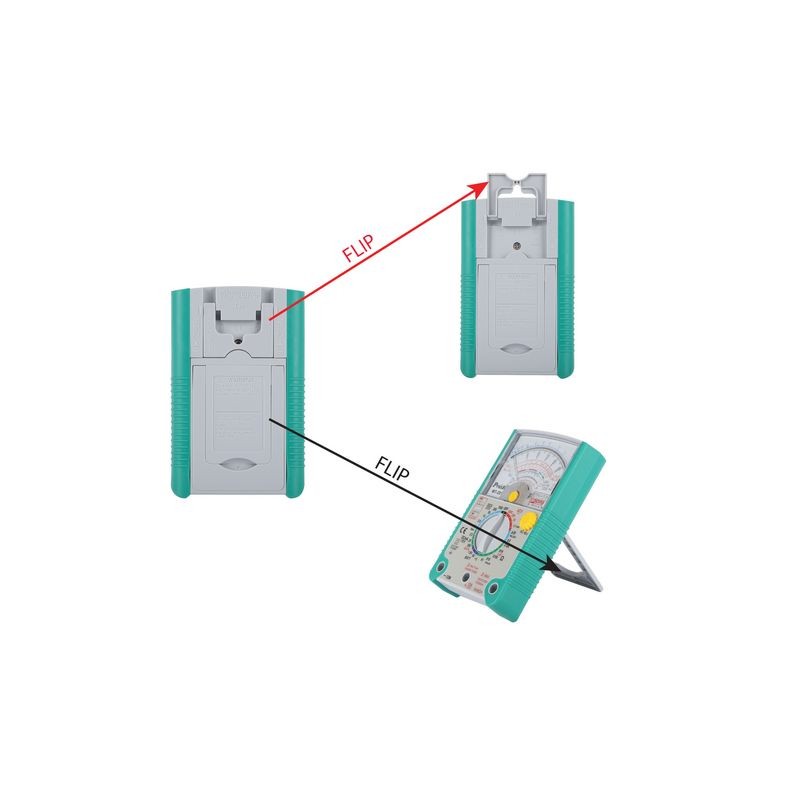

This multifunctional analogue multimeter is an accurate, safe handheld meter that comes with a robust protective holster.

Powered by batteries (2xAAA and 1x 9V (sold separately-see accessories below)).

It offers accurate, reliable measurement of DC and AC voltage, DC current, resistance, decibels, diode, transistor hFE, LED, diode, continuity test and capacitance with very high sensitivity quality movement.

Ideal for indoor use in the laboratory, school, workshop, hobby and home applications.

DC V: Range (0-0.1-2.5-10-50-250 V-1000V),Accuracy (±3% FSD, ±4% FSD for 1000V)

Null DCV: Range (±-5V, ±25V), Accuracy (±5% FSD)

AC V: Range (0-10-50-250V-1000V), Accuracy (±4% FSD, ±5% FSD for 1000V)

DC mA: Range (0-0.05-2.5-25-250 mA, 10A), Accuracy (±3% FSD, ±4% FSD for 10A)

Ω: X 1: 0.2 ~ 2KΩ, Midscale at 20Ω; X 10: 2 ~ 20KΩ, Midscale at 200Ω; X 100: 20~200KΩ, Midscale at 2000Ω; X1K: 200~ 2MΩ, Midscale at 0KΩ; X10K: 2K~20MΩ, Midscale at 200KΩ, Accuracy (± 4% of ARC of Scale Length)

Capacitance (uF): Range (C: 2,000uF Max)

BATT Check: 0 ~ 1.5V: GOOD, - ? – BAD or 0 ~ 9V: GOOD, - ? – BAD

Transistor Check: Range (hFE: 0-1000 via special hFE socket)

LED, Diode: Range (via special hFE socket)

Decibel: Range (-22 dB ~ + 62 dB (0dB=1mW at 600Ω)

Continuity Check: Range (Beeper sounding under 200 Ohm)
