Spade 6.35mm

Type:General Purpose Battery

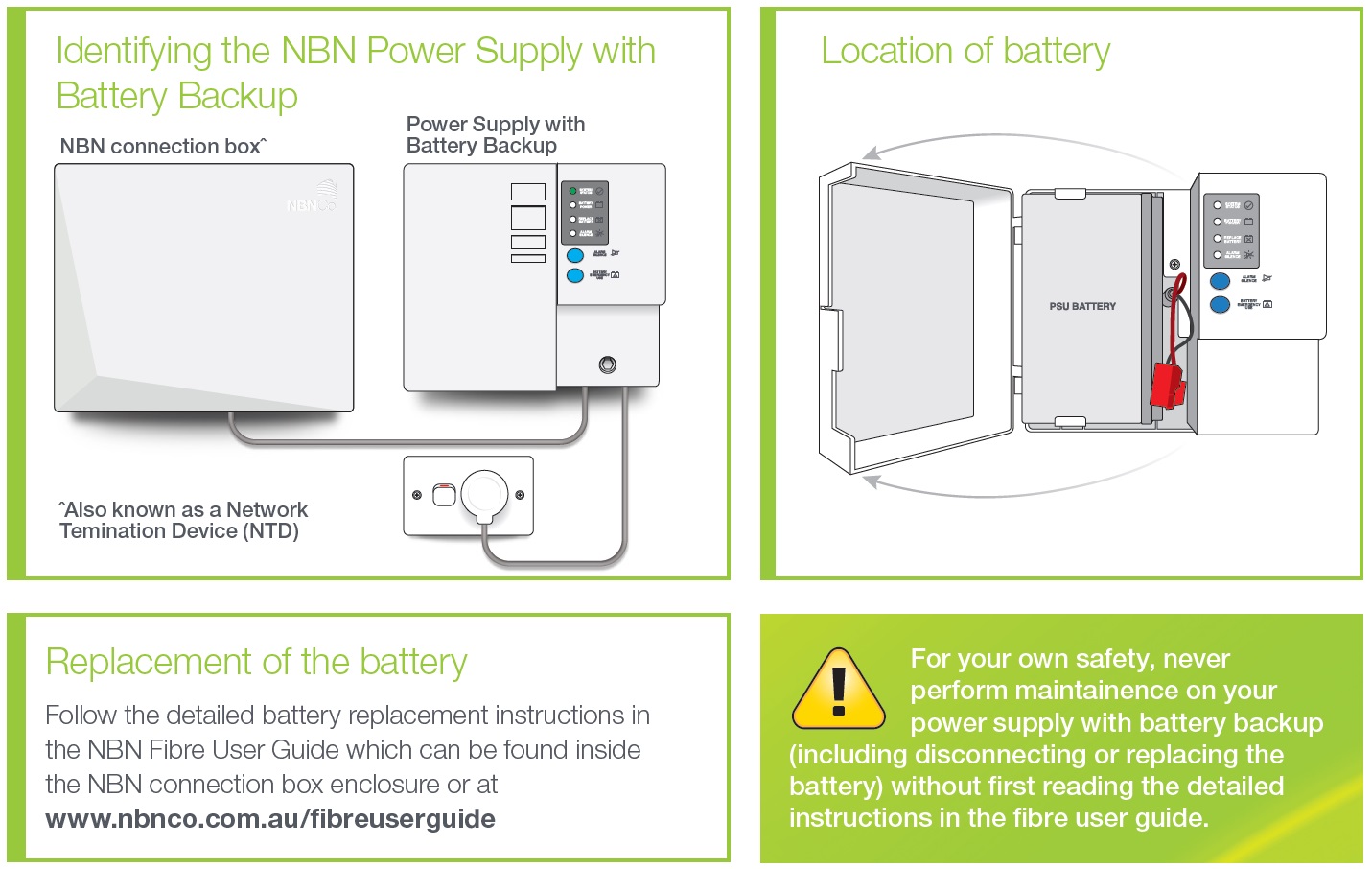

NBN Backup battery:

When an NBN battery has lost its charge, the Power Supply Unit will show a red
light next to the ‘REPLACE BATTERY’ symbol or an alarm beeping once every 15
minutes will sound, indicating the need to replace the battery with a new one.

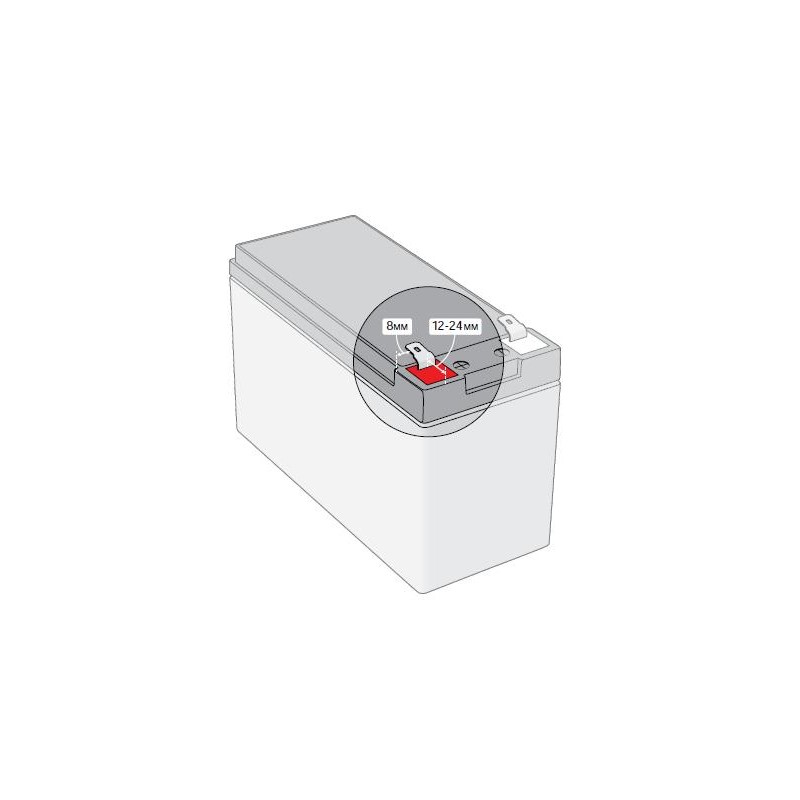

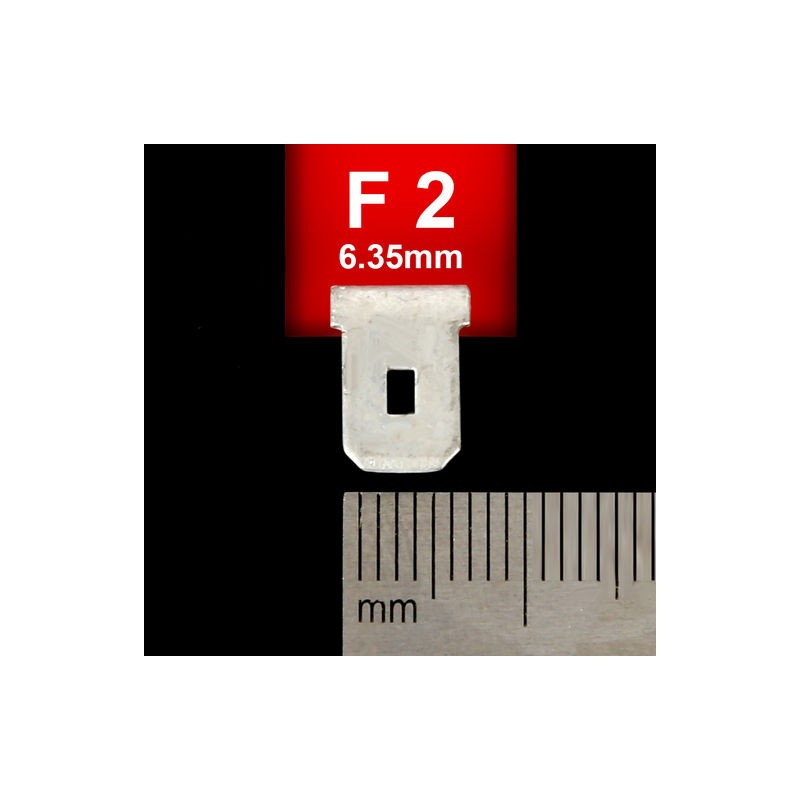

Terminals: Quick Disconnect F2 6.35mm (W) x 0.81mm (T) Faston®Tab terminals.

These are to be located 8mm from the side edge of the battery casing and 12-24mm

from the top edge of the battery casing, as indicated right.

Only batteries that have terminals in these exact locations will function.

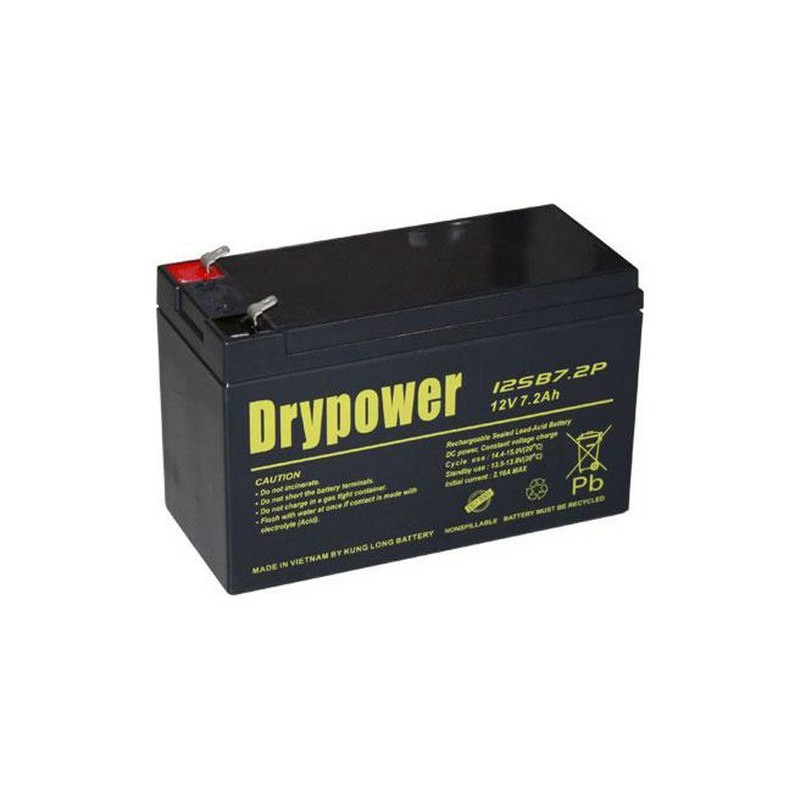

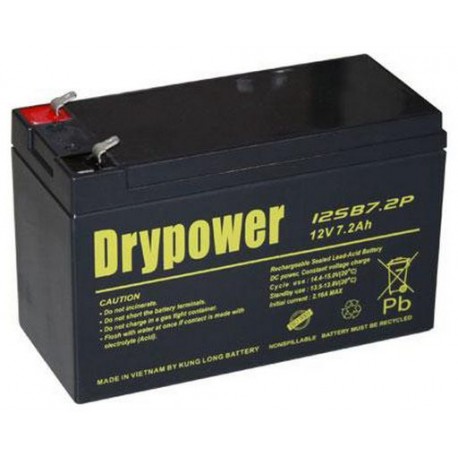

This Drypower sealed lead acid battery also replaces BP7.5-12, BP8-12, EP7-12, EVP7-12, PS1270L, GP1272, GPL1272, EVX1272, DM12-7.2, DM12-7.5, CF-12V7.2, HGL7.2-12, FG20722, DC7-12, CB12V7.5AH, CBC12V8.0AH, NP7-12, LP12-6.5, LP12-7.0, LP12-7.2, LP12-7.5, LP12-7.8, LP12-8.5, LPC12-7.2, LPC12-8.0, LPS12-7.5, WP7.2-12, LC-R127R2P1, PDC-1275, PE12V7.2, RM12-7.2DC, RT1272, RT1275, RT1280, RT1290, CP1270
