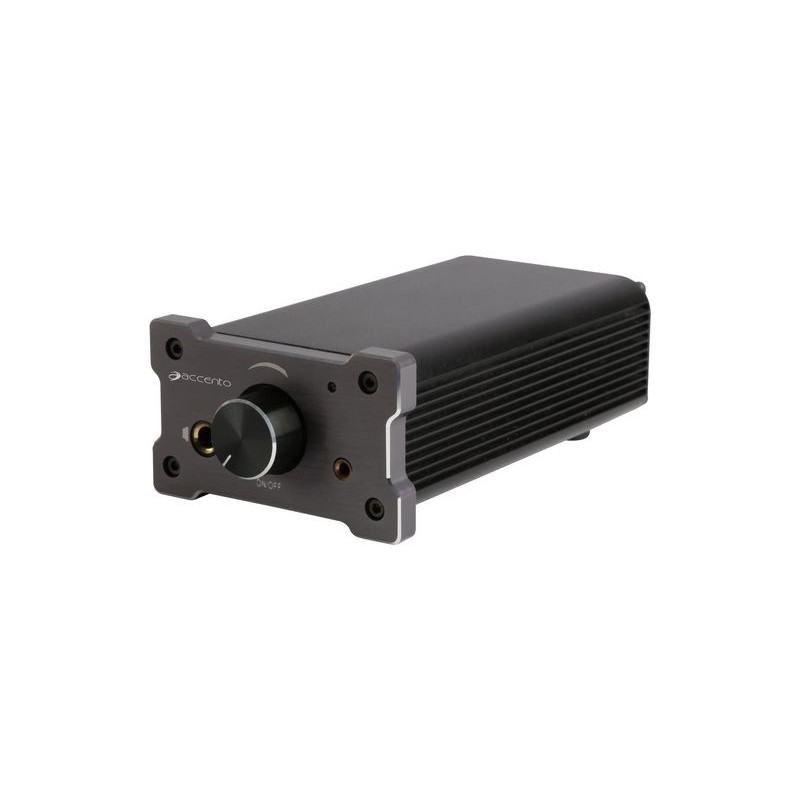

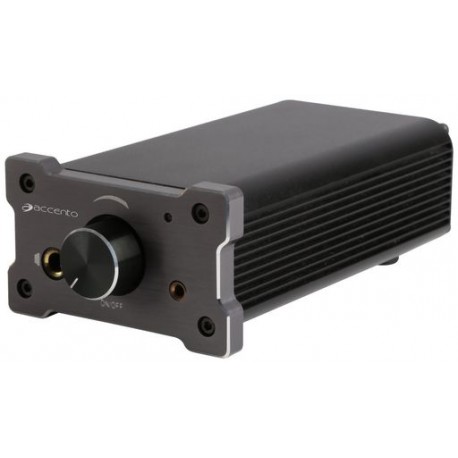

Accento Dynamica 120W Amplifier

AMPADA120

New product

Accento Dynamica 120W Amplifier

Need Help? Click Here

More details

Special Order : 3-5 day delay to order in from suppliers warehouse.

Cost missing? Check VPN .................................
Cost missing?  Check VPN    .................................

Add to wishlist

More info

COMPACT 60Wx2 CHANNEL STEREO AMPLIFIER CLASS-D


The small and powerful Accento Dynamica amplifier installs virtually anywhere.

It produces big-amp sound while occupying minimal space on your desk or cabinet.

The compact size makes it an ideal choice for small areas with limited space or for those looking for a cleaner audio environment, yet still delivers crisp, vibrant sound
comparable to bulky power amplifiers.

This unit features the STA508 chipset that provides 60 watts of continuous power per channel (120Watts total) into a 4 ohm load and 40 watts into an 8 ohm load.


ACCENTO DYNAMICA 120W AMPLIFIER
• STA508 chipset Class-D offers Audiophile-quality sound reproduction
• Compact fits almost anywhere for modern style & minimal decor impact
• Ultra-quiet 103 dB signal to noise ratio (A-weighted)
• 40Wrms into an 8 ohm load, 60Wrms continuous into a 4 ohm load

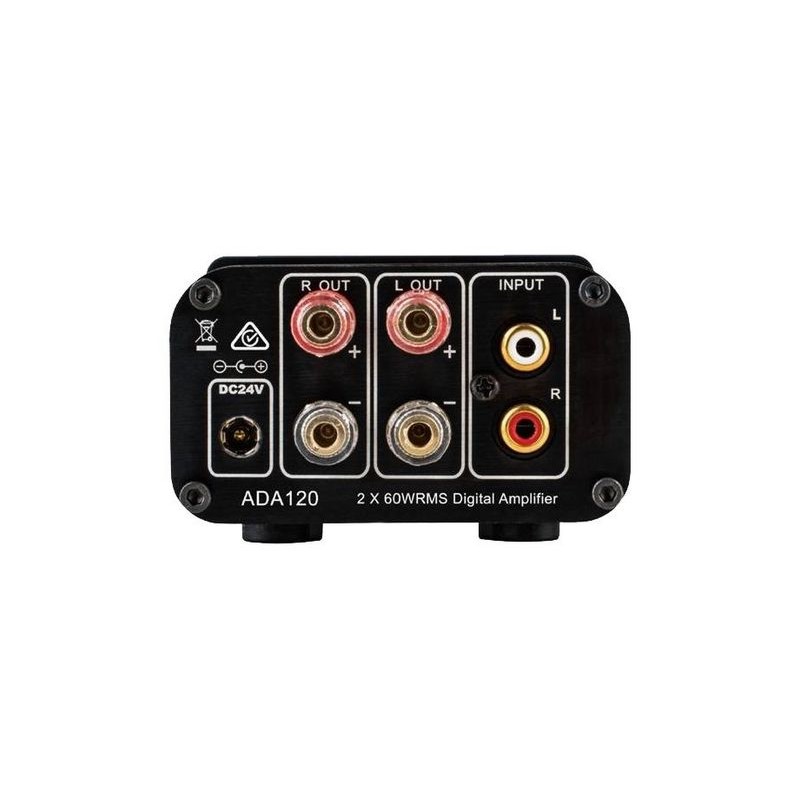

• Front-mounted gold-plated 3.5 mm input and rear gold-plated RCA inputs
• Quad mini gold-plated binding posts accept bare wire or banana plugs
• 6.35mm Headphone gold-plated output socket
• Compact extruded aluminium heat sink enclosure
• Thick, stylish black-anodized aluminium face plate
• Simple controls: Volume pot with Off position
• Short circuit, thermal, and overload protection

• Output bare-wire or 4mm

Power Output: 60 watts RMS x 2 into 4 ohm 40 watts RMS x 2 into 8 ohm
Total Harmonic Distortion: <0.01% @ 30W per channel
<10% @ 60W per channel (4 Ohm)
Speaker Impedance: 4 ohm to 8 ohm
Signal-to-Noise Ratio: 103 dB, A weighted
Input Impedance: 10k ohms (minimum)
Input Sensitivity: 680 mV
Frequency Response: 20-20,000 Hz
Channel Separation: 95 dB
Efficiency: >85%
Dynamic Range: >100 dB
Electrical Requirement: 24VDC @ 5A center pin positive (Power supply is included)
Dimensions: 50mm(H) x 86mm(W) x 160mm(D)
Weight: 540g
