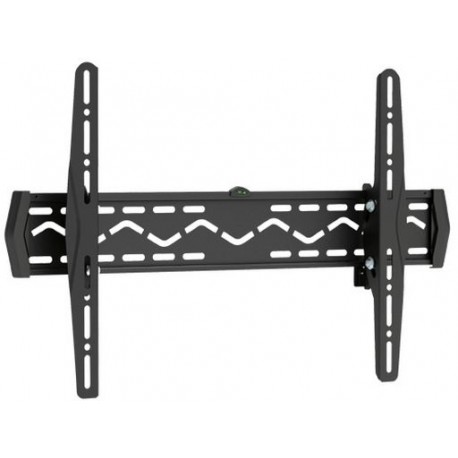

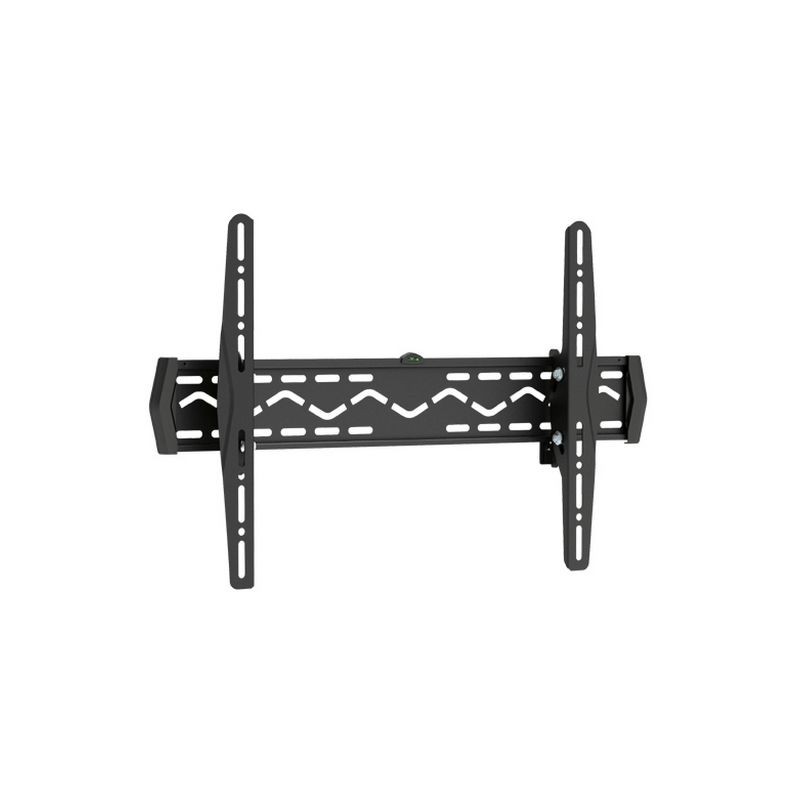

37-80 inch Universal TV Wall Bracket Tilt

Reference: TVSWALL8462

Condition: New product

Universal Television Wall Bracket Tilt 37-80inch

Supports upto 50kg

1 Item Items

Available In Stock

Tilting wall mount for 37"–80" curved & flat panel TVs.

Its solid heavy-gauge steel construction offers a sleek, high-tech look while providing strength and durability.

Adjustable TV brackets offer lateral shift ability to allow perfect TV placement, also included locking hole for anti-theft function.

Universal mounting pattern fits virtually any curved & flat panel TVs up to 50kg.

Compatible with VESA hole up to 600x400.

SPECIFICATION

Product Category:	Tilt TV Wall Mount

Material:	Steel
Metal Sheet Thickness:	Wall Plate THK=2mm cold-rolled sheet,Bracket Arm THK=2mm cold-rolled sheet
rface Finish:	Powder Coating
Color:	Fine Texture Black
Dimensions:	685x436x57mm (27"x17.2"x2.2")
Fit Screen Size:	37"-80"
Fit Curved TV:	Yes
Mounting Hole Pattern:	VESA & Universal

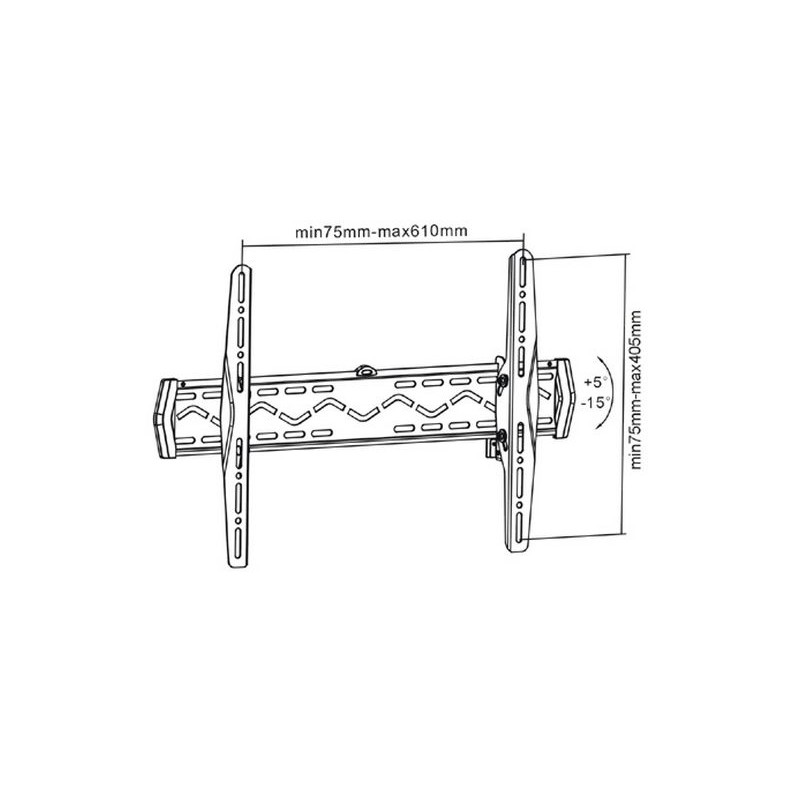

VESA Compatible:	200x200,300x300,400x200,400x400,600x400
Max. VESA:	610x405mm

Weight Capacity:	50kg (110lbs)
Strength Tested:	3 Times Approved
Profile:	57mm (2.2")
Tilt Range:	+5°~-15°
Screen Freely Tilting:	Yes
Installation:	Double Stud(406mm/450mm/600mm),Solid Wall
Panel Type:	Detachable Panel
Wall Plate Type:	Fiixed Wall Plate
Cable Management:	No
Anti-theft:	Yes
Bubble Level:	Built-in Bubble Level (Integrated on Wall Plate)

Screws included: M5x14, M6x14, M6x30, M8x20, M8x30
